Jiangyin Bosj Science & Technology Co., Ltd.

Contact Now

Light Keel Villa Steel House Frame Roll Former Making Machine light gauge steel construction

Name: Light Keel Villa Steel House Frame Roll Former Making Machine light gauge steel construction
Brand: BOSJ
Price: 1 USD

Wholesale Light Keel Villa Steel House Frame Roll Former Making Machine light gauge steel construction from china suppliers

Brand Name : BOSJ

Model Number : BOSJ/V

Certification : CE,ISO,SGS

Place of Origin : JIANGSU

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100 sets per year

Delivery Time : 40 days

Packaging Details : Suitable Size Container for Machine

Control Type : Auto

Thickness : 0.6-1.2mm

Control system : PLC(imported Brand)

Feature : Low Energy Consumption

Production Speed : 40m/min

Material : G300-G550 galvanized steel

Power : 7.5kw

Weight : 3 T

Colour : Customized

Tolerance : punching and cutting: ± 0.5mm forming: ±0.75mm

Contact Now

Light Keel Villa Steel House Frame Roll Former Making Machine light gauge steel construction

Light Keel Villa Steel House Frame Roll Former Making Machine light gauge steel construction

Product Description

Light Keel Villa Steel House Frame Roll Former Making Machine light gauge steel construction

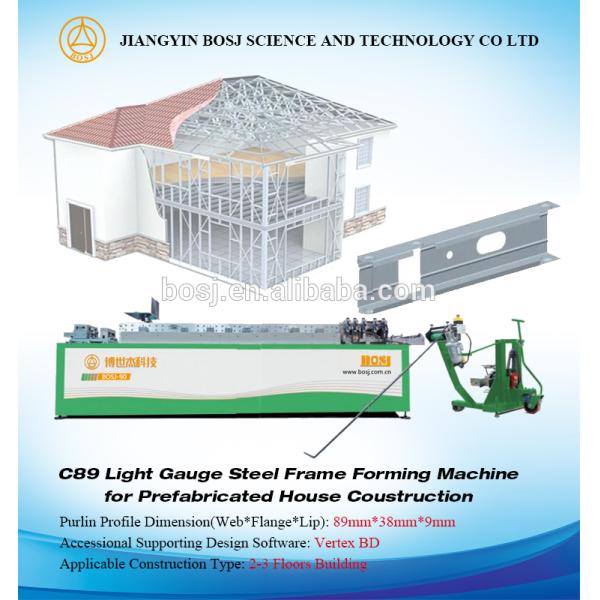

Detail Tools of C89 light guage steel framing machine
(1).Lip Notch;
(2).Web Notch;
(3).Swage;
(4).Service Hole;
(5).Dimple Hole;
(6).Blot Hole;

Light Keel Villa Steel House Frame Roll Former Making Machine light gauge steel construction

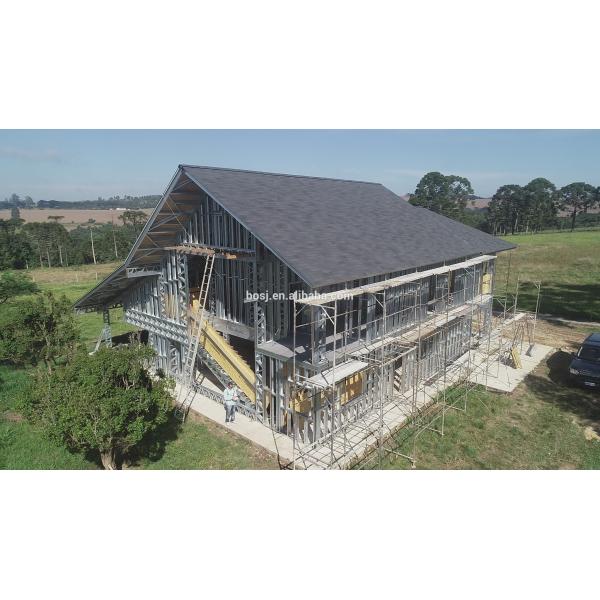

How to Install

1. Assemble light steel keels piece by piece(according to numbers and drawings)

2. Combined all parts together(chassis, wall, floor beam, roof, etc)

3. Install the exterior wall

4. Complete the windows, doors and cornice with trim and flashing

5. Fix the exterior corner

Light Keel Villa Steel House Frame Roll Former Making Machine light gauge steel construction

Smart Internet connectivity provides cloud-based data reporting to enable real time production management and technical diagnostics to improve efficiency.
Advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls and joists.
An auto gauging system that automatically adjusts gauge range to increase overall productivity for steel t hickness from 0.6 -1.2 mm.

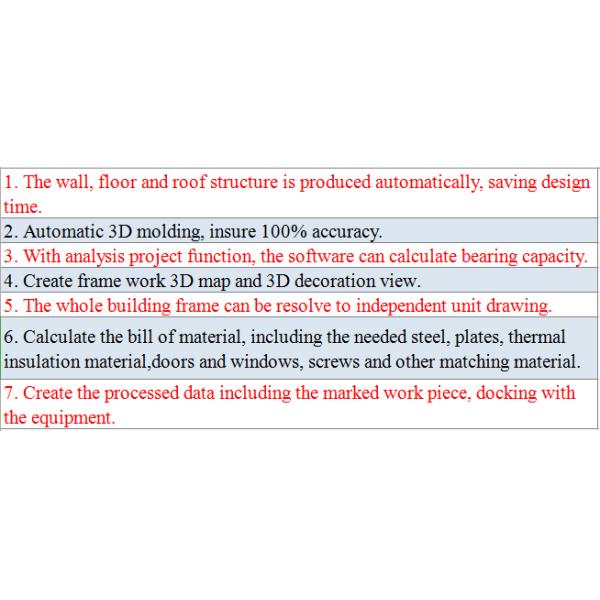

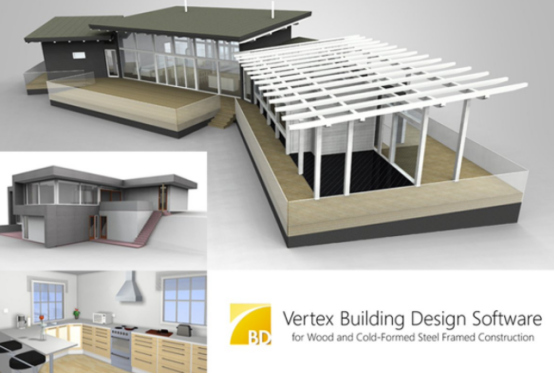

Vertex BD Software

Light Keel Villa Steel House Frame Roll Former Making Machine light gauge steel construction

Thank you for your attention!
You can send your inquiry details in the below,

Click “Send” Now !

Light Keel Villa Steel House Frame Roll Former Making Machine light gauge steel construction Images
